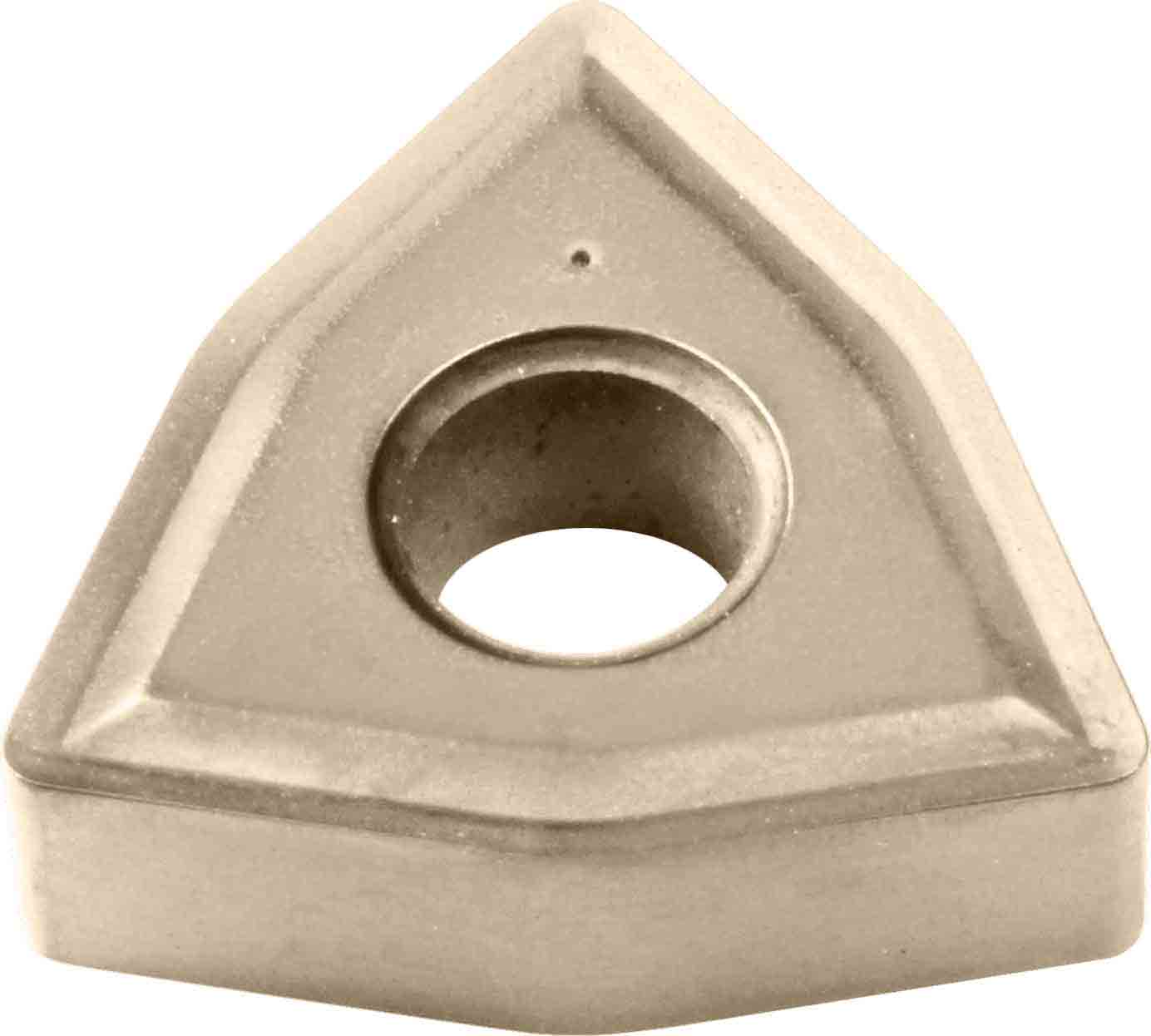

PLAQUITA WNMG
REFERENCIAS DEL PRODUCTO:

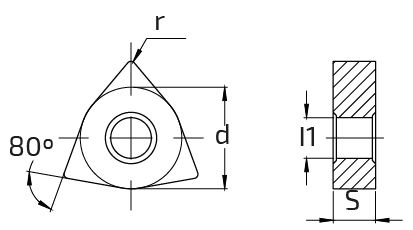

Referencia | r | l1 | s | d | D |
---|---|---|---|---|---|
WNMG 080404-SP KP135 | 0.4 | 5.16 | 4.76 | 12.7 | 12.7 |
WNMG 080404-SP KP125 | 0.4 | 5.16 | 4.76 | 12.7 | 12.7 |
WNMG 080408-SP KP135 | 0.8 | 5.16 | 4.76 | 12.7 | 12.7 |
WNMG 080408-SP KP125 | 0.8 | 5.16 | 4.76 | 12.7 | 12.7 |
WNMG 080408-MM KP135 | 0.8 | 5.16 | 4.76 | 12.7 | 12.7 |
WNMG 080408-MM KP125 | 0.8 | 5.16 | 4.76 | 12.7 | 12.7 |
WNMG 080408-MM KM145 | 0.8 | 5.16 | 4.76 | 12.7 | 12.7 |
WNMG 080408-MM KM135 | 0.8 | 5.16 | 4.76 | 12.7 | 12.7 |
WNMG 080404-MP KP135 | 0.4 | 5.16 | 4.76 | 12.7 | 12.7 |
WNMG 080404-MP KP125 | 0.4 | 5.16 | 4.76 | 12.7 | 12.7 |
WNMG 080408-MP KP135 | 0.8 | 5.16 | 4.76 | 12.7 | 12.7 |
WNMG 080408-MP KP125 | 0.8 | 5.16 | 4.76 | 12.7 | 12.7 |
WNMG 080408-MP KM145 | 0.8 | 5.16 | 4.76 | 12.7 | 12.7 |
WNMG 080408-MP KM135 | 0.8 | 5.16 | 4.76 | 12.7 | 12.7 |
WNMG 080412-MP KP135 | 1.2 | 5.16 | 4.76 | 12.7 | 12.7 |
WNMG 080412-MP KP125 | 1.2 | 5.16 | 4.76 | 12.7 | 12.7 |
WNMG 080408-RG KP135 | 0.8 | 5.16 | 4.76 | 12.7 | 12.7 |
WNMG 080408-RG KP125 | 0.8 | 5.16 | 4.76 | 12.7 | 12.7 |
WNMG 080408-RG KM145 | 0.8 | 5.16 | 4.76 | 12.7 | 12.7 |
WNMG 080408-RG KM135 | 0.8 | 5.16 | 4.76 | 12.7 | 12.7 |
WNMG 080408-RP KP135 | 0.8 | 5.16 | 4.76 | 12.7 | 12.7 |
WNMG 080408-RP KP125 | 0.8 | 5.16 | 4.76 | 12.7 | 12.7 |
WNMG 080408-RP KM145 | 0.8 | 5.16 | 4.76 | 12.7 | 12.7 |
WNMG 080408-RP KM135 | 0.8 | 5.16 | 4.76 | 12.7 | 12.7 |
WNMG 080412-RP KP135 | 1.2 | 5.16 | 4.76 | 12.7 | 12.7 |
WNMG 080412-RP KP125 | 1.2 | 5.16 | 4.76 | 12.7 | 12.7 |
WNMG 080404-RM KM135 | 0.4 | 5.16 | 4.76 | 12.7 | 12.7 |
WNMG 080404-RM KM145 | 0.4 | 5.16 | 4.76 | 12.7 | 12.7 |
WNMG 080408-RM KM135 | 0.8 | 5.16 | 4.76 | 12.7 | 12.7 |
WNMG 080408-RM KM145 | 0.8 | 5.16 | 4.76 | 12.7 | 12.7 |
WNMG 080412-RM KM135 | 1.2 | 5.16 | 4.76 | 12.7 | 12.7 |
WNMG 080412-RM KM145 | 1.2 | 5.16 | 4.76 | 12.7 | 12.7 |
WNMG 080404-SM KP115 | 0.4 | 5.16 | 4.76 | 12.7 | 12.7 |
WNMG 080404-SM KP125 | 0.4 | 5.16 | 4.76 | 12.7 | 12.7 |
WNMG 080408-SM KP115 | 0.8 | 5.16 | 4.76 | 12.7 | 12.7 |
WNMG 080408-SM KP125 | 0.8 | 5.16 | 4.76 | 12.7 | 12.7 |
WNMG 080412-SM KP115 | 1.2 | 5.16 | 4.76 | 12.7 | 12.7 |
WNMG 080412-SM KP125 | 1.2 | 5.16 | 4.76 | 12.7 | 12.7 |
WNMG 080416-SM KP115 | 1.6 | 5.16 | 4.76 | 12.7 | 12.7 |
WNMG 080416-SM KP125 | 1.6 | 5.16 | 4.76 | 12.7 | 12.7 |
WNMG 06T312-RM KP115 | 1.2 | 3.81 | 3.97 | 9.525 | 9.525 |
WNMG 06T312-RM KP125 | 1.2 | 3.81 | 3.97 | 9.525 | 9.525 |
