B-2020 BROCA METAL DURO 20XD CON REFRIGERACIÓN INTERNA
BROCA METAL DURO 20XD CON REFRIGERACIÓN INTERNA
Disponibilidad: En Stock
-

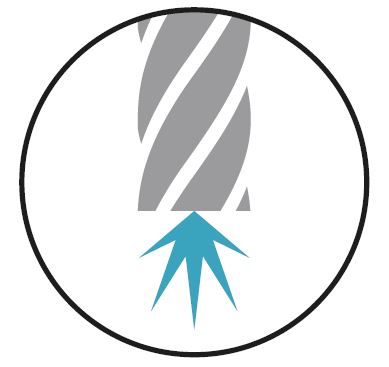

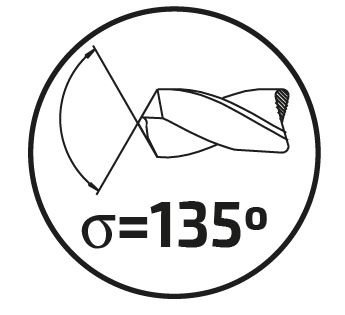

Broca metal duro integral 20xD con recubrimiento TiAlN, con refrigeración interior y con corte a derecha. Ángulo de punta

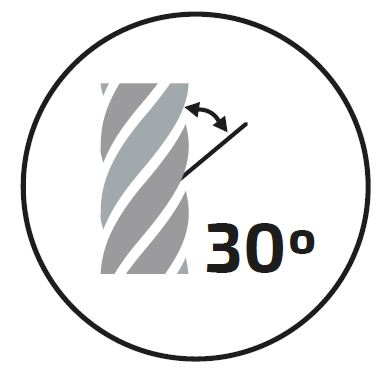

135º, ángulo de espiral 30º. Geometría de corte especial para taladrado previo con broca 3xD, que garantiza una perfecta concentricidad. Afilado especial de los canales para disminuir el coeficiente de fricción, mejorando la extracción de viruta. Para trabajos con refrigeración interna.
REFERENCIAS DEL PRODUCTO:

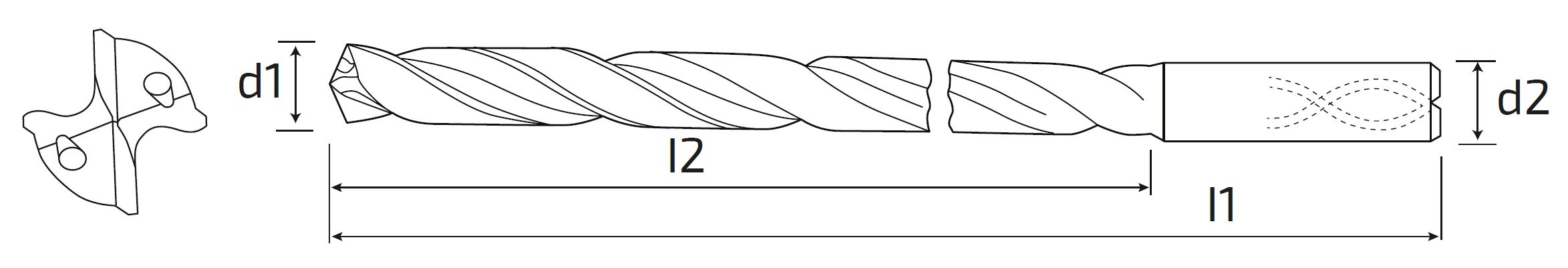

| Referencia | d1_m7 | d2h5 | l1 | l2 |
|---|---|---|---|---|
| B2020022210 | 2.2 | 3 | 90 | 50.6 |
| B2020023210 | 2.3 | 3 | 92 | 52.9 |
| B2020024210 | 2.4 | 3 | 94 | 55.2 |
| B2020025210 | 2.5 | 3 | 96 | 57.5 |
| B2020026210 | 2.6 | 3 | 99 | 59.8 |
| B2020027210 | 2.7 | 3 | 101 | 62.1 |
| B2020028210 | 2.8 | 3 | 103 | 64.4 |
| B2020029210 | 2.9 | 3 | 105 | 66.7 |
| B2020030210 | 3 | 6 | 110 | 70 |
| B2020031210 | 3.1 | 6 | 122 | 82 |
| B2020032210 | 3.2 | 6 | 122 | 82 |
| B2020033210 | 3.3 | 6 | 122 | 82 |
| B2020034210 | 3.4 | 6 | 122 | 82 |
| B2020035210 | 3.5 | 6 | 122 | 82 |
| B2020036210 | 3.6 | 6 | 133 | 93 |
| B2020037210 | 3.7 | 6 | 133 | 93 |
| B2020038210 | 3.8 | 6 | 133 | 93 |
| B2020039210 | 3.9 | 6 | 133 | 93 |
| B2020040210 | 4 | 6 | 133 | 93 |
| B2020041210 | 4.1 | 6 | 145 | 105 |
| B2020042210 | 4.2 | 6 | 145 | 105 |
| B2020043210 | 4.3 | 6 | 145 | 105 |
| B2020044210 | 4.4 | 6 | 145 | 105 |
| B2020045210 | 4.5 | 6 | 145 | 105 |
| B2020046210 | 4.6 | 6 | 156 | 116 |
| B2020247210 | 4.7 | 6 | 156 | 116 |
| B2020248210 | 4.8 | 6 | 156 | 116 |
| B2020049210 | 4.9 | 6 | 156 | 116 |
| B2020050210 | 5 | 6 | 156 | 116 |
| B2020051210 | 5.1 | 6 | 168 | 128 |
| B2020052210 | 5.2 | 6 | 168 | 128 |
| B2020053210 | 5.3 | 6 | 168 | 128 |
| B2020054210 | 5.4 | 6 | 168 | 128 |
| B2020055210 | 5.5 | 6 | 168 | 128 |
| B2020056210 | 5.6 | 6 | 179 | 139 |
| B2020057210 | 5.7 | 6 | 179 | 139 |
| B2020058210 | 5.8 | 6 | 179 | 139 |
| B2020059210 | 5.9 | 6 | 179 | 139 |
| B2020060210 | 6 | 6 | 179 | 139 |
| B2020065210 | 6.5 | 8 | 191 | 151 |
| B2020070210 | 7 | 8 | 202 | 162 |
| B2020075210 | 7.5 | 8 | 214 | 174 |
| B2020080210 | 8 | 8 | 225 | 185 |
| B2020088210 | 8.8 | 10 | 290 | 230 |
CONDICIONES DE CORTE:
