B-1220 BROCA METAL DURO 12XD CON REFRIGERACIÓN INTERNA
BROCA METAL DURO 12XD CON REFRIGERACIÓN INTERNA
Disponibilidad: En Stock
- Broca metal duro integral 12xD con recubrimiento TiAlN, con refrigeración interior y con corte a derecha. Ángulo de punta 135º, ángulo de espiral 30º. Geometría de corte especial para taladrado previo con broca 3xD, que garantiza una perfecta concentricidad. Afilado especial de los canales para disminuir el coeficiente de fricción, mejorando la extracción de viruta. Para trabajos con refrigeración externa.
REFERENCIAS DEL PRODUCTO:

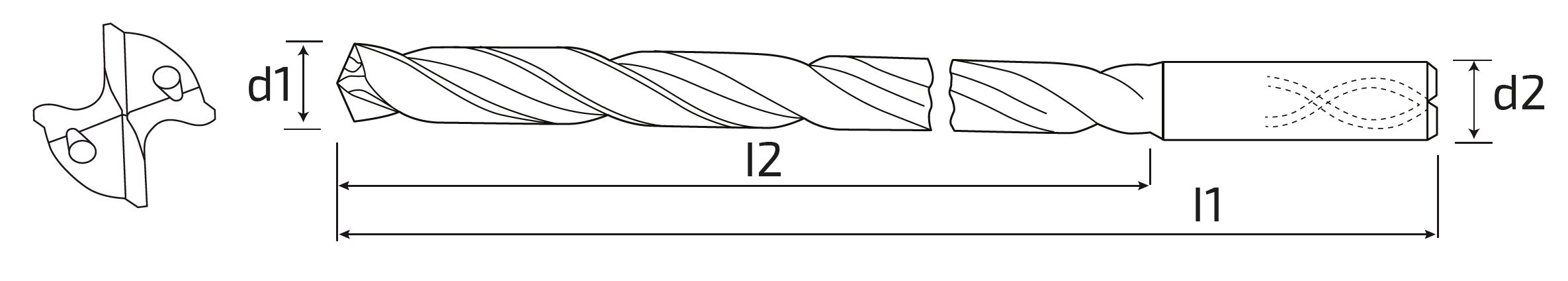

| Referencia | d1_m7 | d2h5 | l1 | l2 |
|---|---|---|---|---|
| B1220022210 | 2.2 | 3 | 65 | 29.7 |
| B1220022510 | 2.25 | 3 | 65 | 30.4 |
| B1220023210 | 2.3 | 3 | 65 | 31.1 |
| B1220023510 | 2.35 | 3 | 75 | 31.7 |
| B1220024210 | 2.4 | 3 | 75 | 32.4 |
| B1220024510 | 2.45 | 3 | 75 | 33.1 |
| B1220025210 | 2.5 | 3 | 75 | 33.8 |
| B1220025510 | 2.55 | 3 | 75 | 34.4 |
| B1220026210 | 2.6 | 3 | 75 | 35.1 |
| B1220026510 | 2.65 | 3 | 75 | 35.8 |
| B1220027210 | 2.7 | 3 | 75 | 36.5 |
| B1220027510 | 2.75 | 3 | 75 | 37.1 |
| B1220028210 | 2.8 | 3 | 75 | 37.8 |
| B1220028510 | 2.85 | 3 | 75 | 38.5 |
| B1220029210 | 2.9 | 3 | 75 | 39.2 |
| B1220029510 | 2.95 | 3 | 75 | 39.8 |
| B1220030210 | 3 | 6 | 86 | 46 |
| B1220031210 | 3.1 | 6 | 94 | 54 |
| B1220032210 | 3.2 | 6 | 94 | 54 |
| B1220033210 | 3.3 | 6 | 94 | 54 |
| B1220034210 | 3.4 | 6 | 94 | 54 |
| B1220035210 | 3.5 | 6 | 94 | 54 |
| B1220036210 | 3.6 | 6 | 101 | 61 |
| B1220037210 | 3.7 | 6 | 101 | 61 |
| B1220038210 | 3.8 | 6 | 101 | 61 |
| B1220039210 | 3.9 | 6 | 101 | 61 |
| B1220040210 | 4 | 6 | 101 | 61 |
| B1220041210 | 4.1 | 6 | 109 | 69 |
| B1220042210 | 4.2 | 6 | 109 | 69 |
| B1220043210 | 4.3 | 6 | 109 | 69 |
| B1220044210 | 4.4 | 6 | 109 | 69 |
| B1220045210 | 4.5 | 6 | 109 | 69 |
| B1220046210 | 4.6 | 6 | 116 | 76 |
| B1220047210 | 4.7 | 6 | 116 | 76 |
| B1220048210 | 4.8 | 6 | 116 | 76 |
| B1220049210 | 4.9 | 6 | 116 | 76 |
| B1220050210 | 5 | 6 | 116 | 76 |
| B1220051210 | 5.1 | 6 | 124 | 84 |
| B1220052210 | 5.2 | 6 | 124 | 84 |
| B1220053210 | 5.3 | 6 | 124 | 84 |
| B1220054210 | 5.4 | 6 | 124 | 84 |
| B1220055210 | 5.5 | 6 | 124 | 84 |
| B1220056210 | 5.6 | 6 | 131 | 91 |
| B1220057210 | 5.7 | 6 | 131 | 91 |
| B1220058210 | 5.8 | 6 | 131 | 91 |
| B1220059210 | 5.9 | 6 | 131 | 91 |
| B1220060210 | 6 | 6 | 131 | 91 |
| B1220065210 | 6.5 | 8 | 139 | 99 |
| B1220070210 | 7 | 8 | 146 | 106 |
| B1220075210 | 7.5 | 8 | 154 | 114 |
| B1220080210 | 8 | 8 | 161 | 121 |
| B1220085210 | 8.5 | 10 | 173 | 129 |
| B1220090210 | 9 | 10 | 180 | 136 |
| B1220095210 | 9.5 | 10 | 189 | 145 |
| B1220100210 | 10 | 10 | 196 | 152 |
| B1220105210 | 10.5 | 12 | 209 | 160 |
| B1220110210 | 11 | 12 | 216 | 167 |
| B1220115210 | 11.5 | 12 | 224 | 175 |
| B1220120210 | 12 | 12 | 231 | 182 |
CONDICIONES DE CORTE:
